1PCS TZG40 PV Discharge Tube SPD Replacement Module AC 255–420V DC 500–1500V 10kA/20kA/30kA Household Surge Protector

Name: ម៉ូឌុលជំនួស SPD បំពង់បញ្ចេញ PV TZG40 ចំនួន 1 ដុំ AC 255–420V DC 500–1500V 10kA/20kA/30kA ឧបករណ៍ការពារការកើនឡើងក្នុងផ្ទះ
Brand: TOMZN
SKU: 1005012177659805-DC 800V-10-20kA
Price: 8.65 USD
Availability: InStock

SPECIFICATIONS

Brand Name: TOMZN

Certification: CE

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Is Smart Device: no

Model Number: TZG40-B/C/D/PV

Origin: Mainland China

Type: Mini,Circuit breaker

is_customized: Yes

Product Introduction

The TZG40 Series replacement modules are designed for use in compatible surge protective devices (SPDs), offering flexible voltage and current ratings for both AC and DC applications. Available in types B, C, D, and PV, these modules support DC voltages from 500V to 1500V, AC voltages of 275V, 385V, or 420V, as well as an NPE (Neutral-to-Earth) version. Rated discharge currents range from 10-20kA to 30-60kA depending on the model. A built-in visual indicator turns red when the module has degraded and requires replacement. Note: These modules are not compatible with the TOV1 series surge protectors, and the NPE module is intended exclusively for NPE-type SPDs.

Product Data Sheet

Product series: TZG40

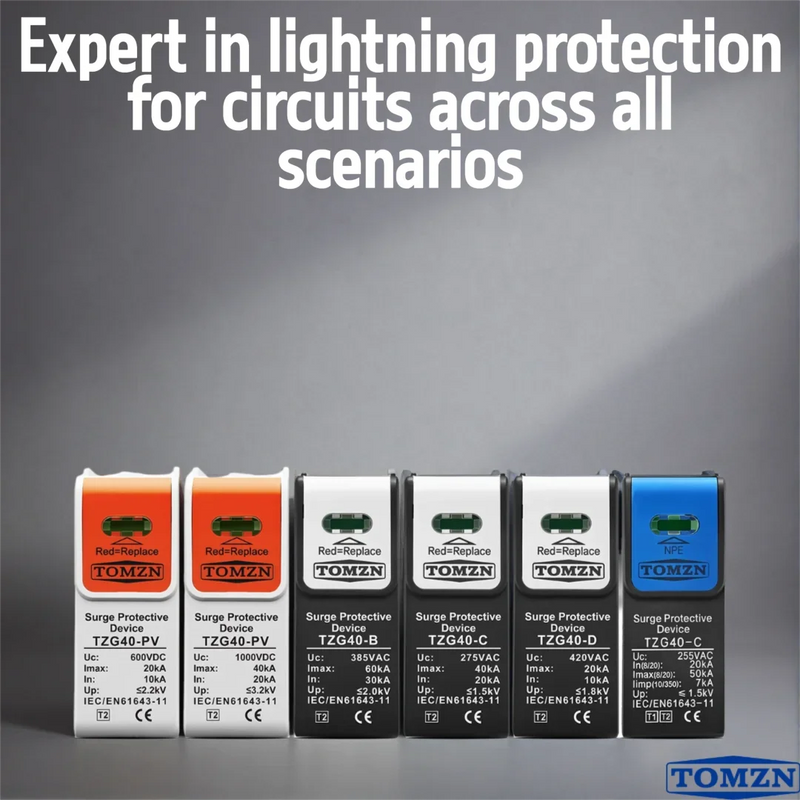

Types: B, C, D, PV
Application: AC/DC replacement module
Rated DC voltages: 500V, 600V, 800V, 1000V, 1200V, 1500V
Rated AC voltages: 275V, 385V, 420V, NPE
Rated current (discharge) options: 10-20kA, 20-40kA, 30-60kA, 20-50kA

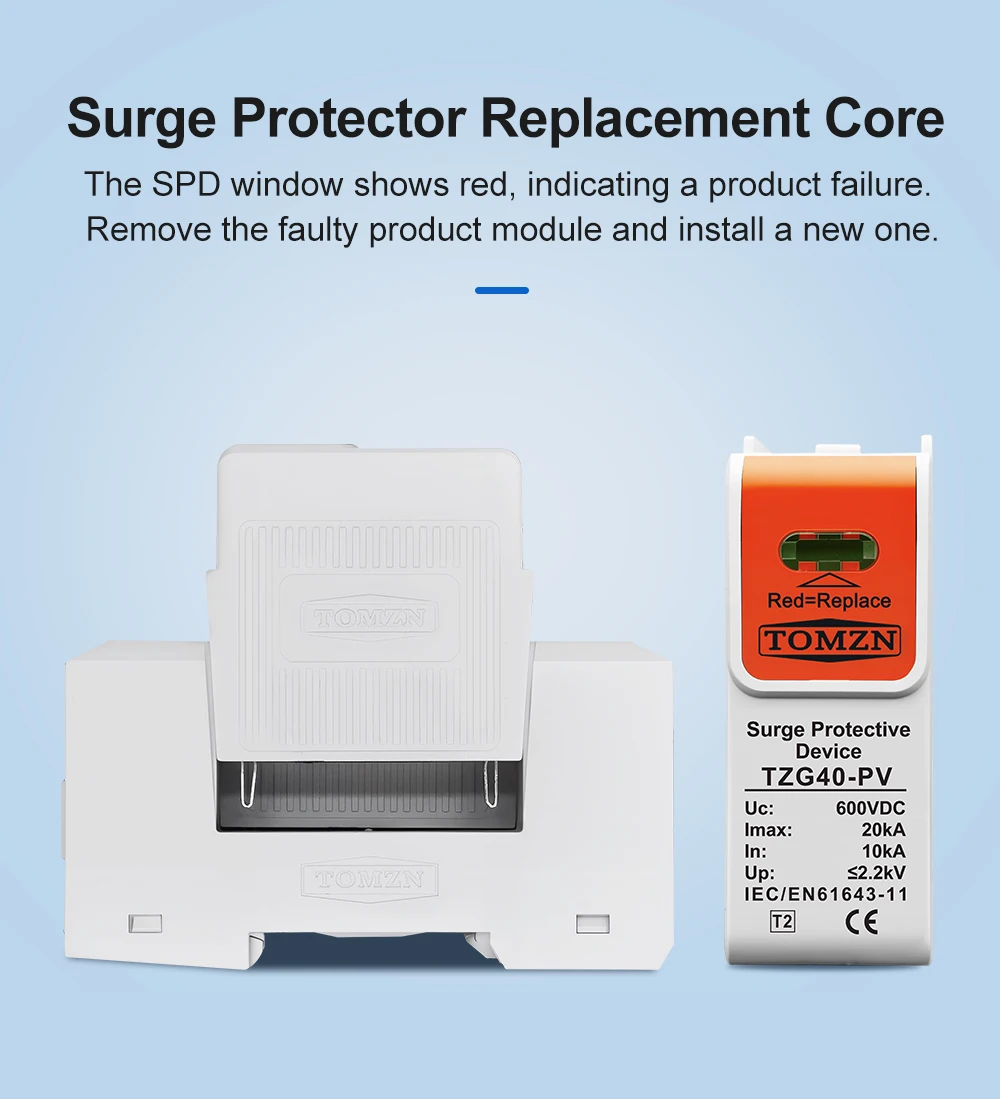

Indicator: Red when module needs replacement
Compatibility: Not for TOV1 series surge protectors

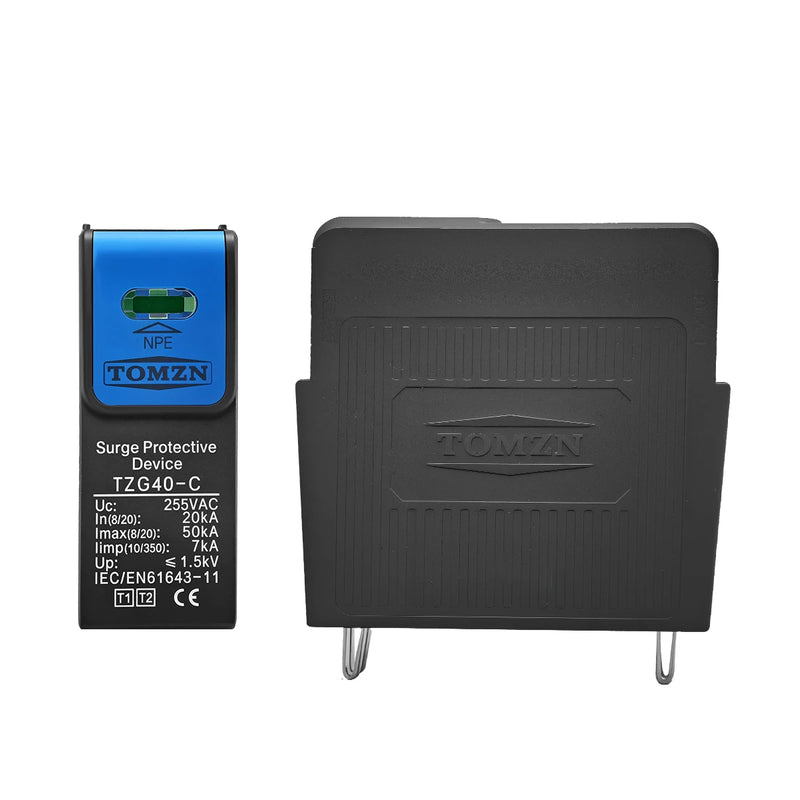

NPE module usage: Only for NPE surge protectors
