SPECIFICATIONS

UGREEN

◎ Brand Newest Release

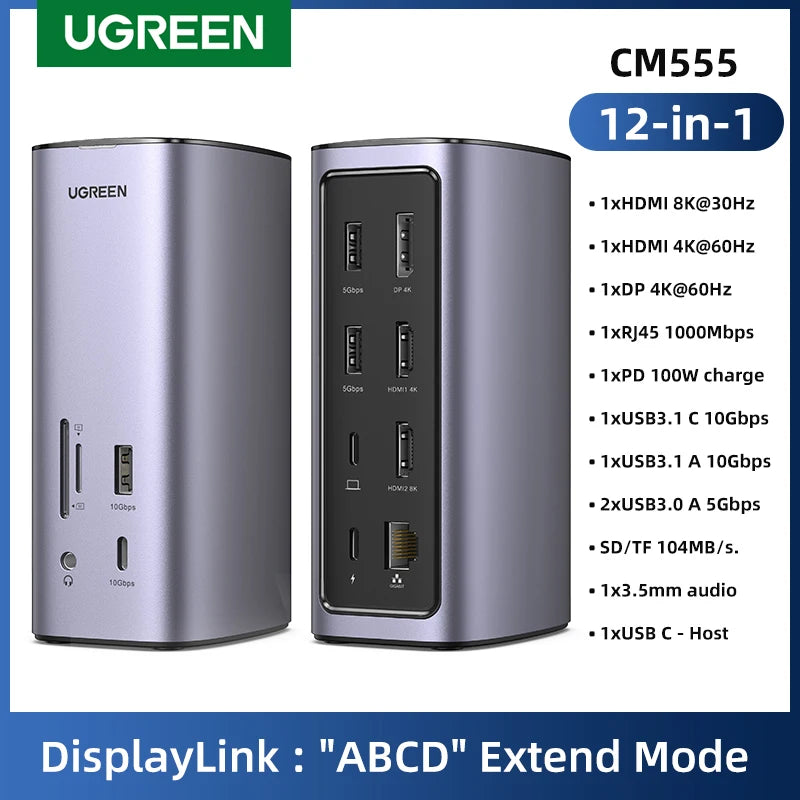

◀◀ 12-IN-1 Docking Station 8K▶▶

POWERFUL 12-IN-1

Laptop Docking Station CM555

Expand 12 Ports for Your Laptop, Meet All Your Needs

◆1xHDMI 8K@30Hz : 7680*4320@30Hz，3840*2160@120Hz，1920*1080@240Hz

◆1xHDMI 4K@60Hz : 3840*2160@60Hz，2560*1440@120Hz, 1920*1080@144Hz

◆1xDisplayPort 4K@60Hz : 3840*2160@60Hz，2560*1440@120Hz, 1920*1080@144Hz

◆1xRJ45 : 1000Mbps

◆1xPD 3.0：100W Laptop Charging

◆1xUSB A 3.1 Gen 2：10Gbps，7.5W Charging；

◆1xUSB C 3.1 Gen 2 : 10Gbps，7.5W Charging；

◆2xUSB 3.0 : 5Gbps，7.5W Charging；

◆1xSD：104MB/s.

◆1xTF (Micro SD)：104MB/s.

◆1x3.5mm audio: For connecting to headphones and microphone. Support stereo output, microphone input, line control;

Note: Display and network functions need to install the driver. If your computer doesn't have a CD Drive to install the driver, you also can easily install the driver through the Installation Manual (PDF) of product guides and documents or check the User Manual.

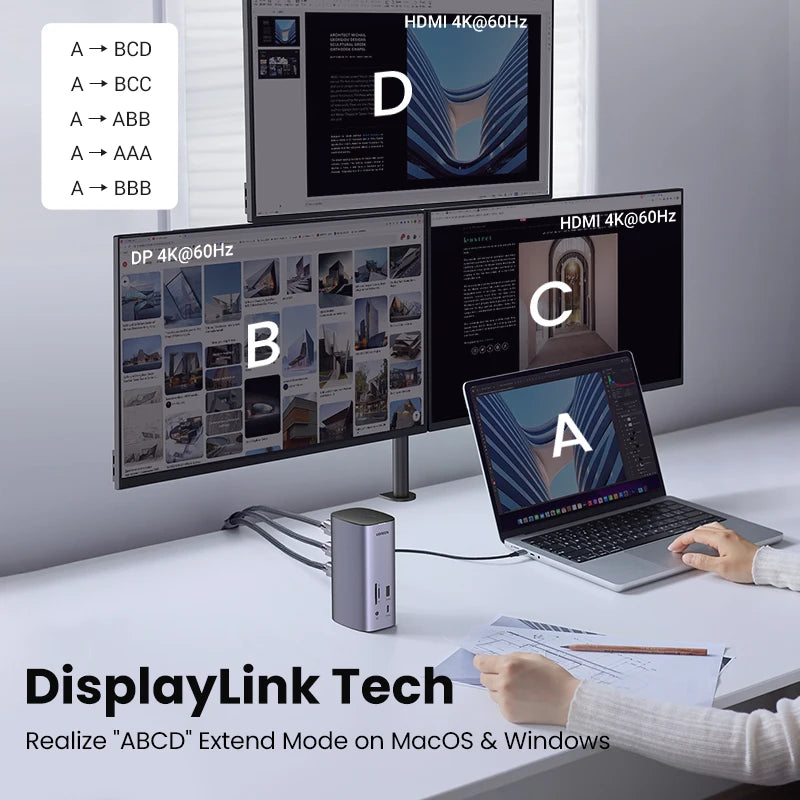

The Latest DisplayLink Technology

Realize triple display "ABCD" Extended Mode both on MacOS & Windows

*Technical Explanation:

Only DisplayLinktech supports triple display "ABCD" Extended Mode on MacOS

Crystal-clear Streaming

8K@30Hz HDMI + 4K@60Hz HDMI + 4K@60Hz DisplayPort

USB C docking station HDMI2 port supports up to 8K@30Hz in Windows, and up to 4K@60Hz in Mac OS. Connect via all three simultaneously to enjoy crystal-clear streaming or mirroring across 3 displays.

Perfect Resolution Under Single/Dual/Triple Display

Note: Windows supports 8K@30Hz Max, Mac OS suports 4K@60Hz Max in 3 Display Monitor

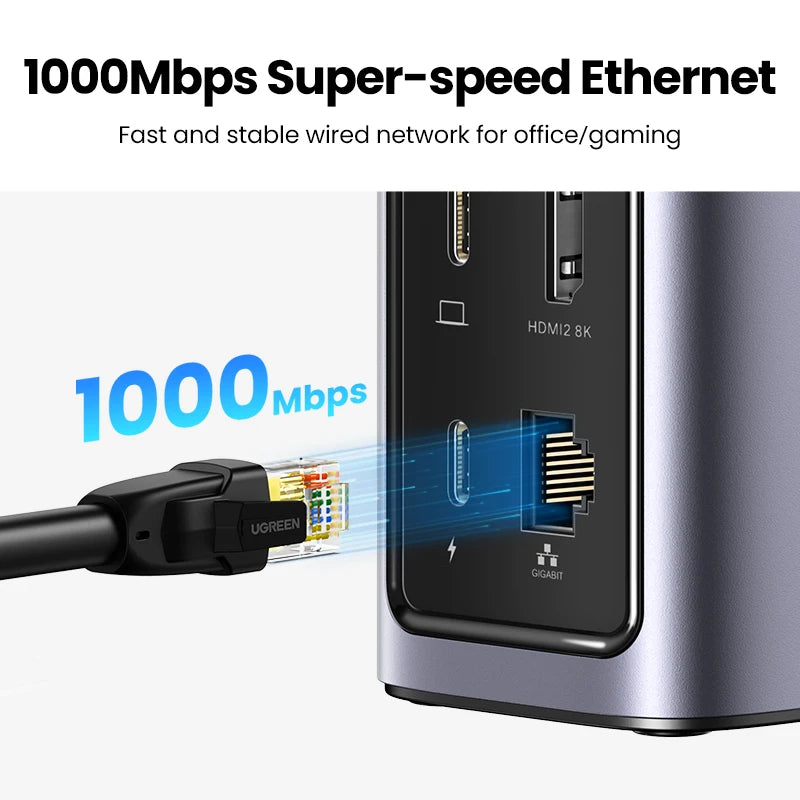

1000Mbps Super-speed Ethernet

Fast and stable wired network for office work/gaming

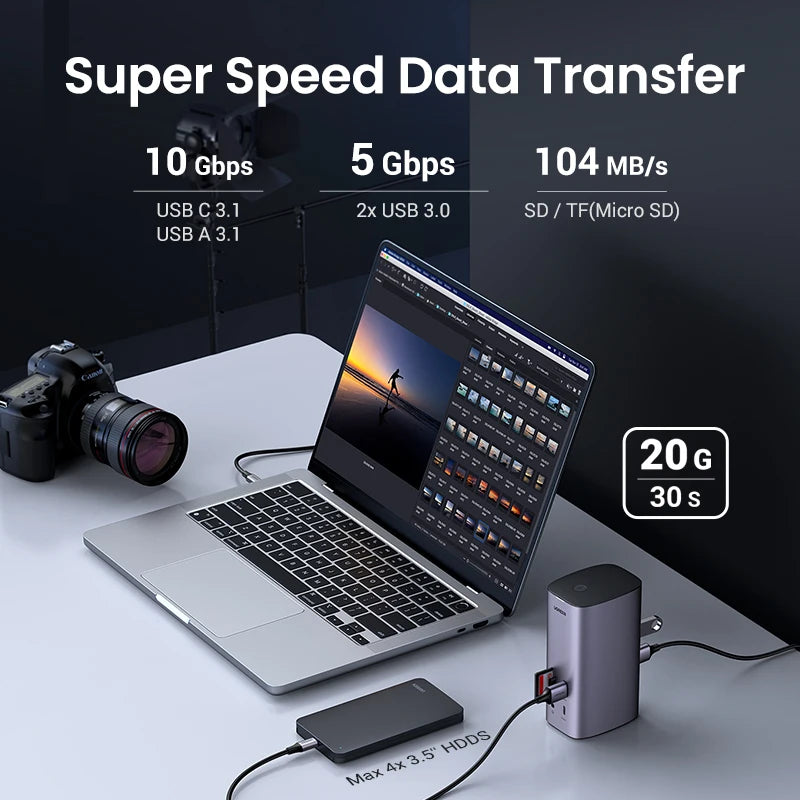

Transfer Files at Incredible Speed

Only 30s. needed for transferring 20GB larger files

◆1xUSB A 3.1 Gen 2：10Gbps，7.5W Charging；

◆1xUSB C 3.1 Gen 2 : 10Gbps，7.5W Charging；

◆2xUSB 3.0 : 5Gbps，7.5W Charging；

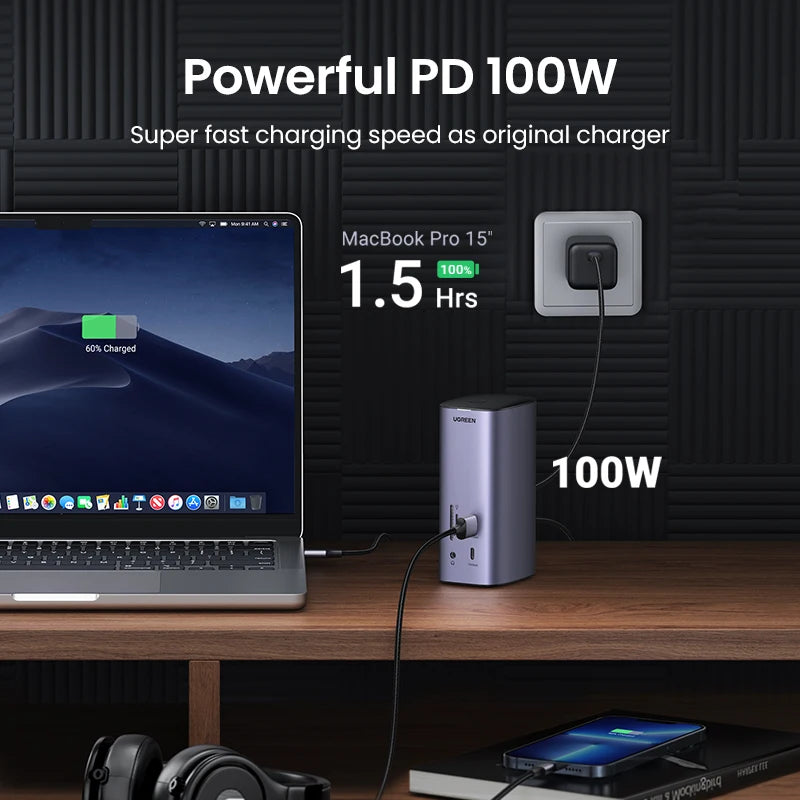

Powerful PD 100W

Super fast charging speed as the original charger, only 1.5 hours is needed to charge MacBook Pro 15" to 100% battery.

Use 3 or 4 HDD/SSD at The Same Time

With PD charging: use 3x 2.5'' HDD/SSD, or 4x 3.5''HDD

Without PD charging: use 2x 2.5'' HDD/SSD, or 3x 3.5''HDD

Read SD/TF Cards At the Same Time

104MB/s Super transmission speed,

seamless access to photos and other media files

3.5mm Audio Port

①Work/Study from Home

Connect to 3.5mm-plug headphones, and enjoy a focused work/ study space

②Enjoy Immersive Hifi Music

Connect laptop/ iPad/ smartphone to speaker via 3.5mm Aux cable

Compatibility List

(Partial)

Wide Compatibility

Driver Introduction

Product Specification

Brand : UGREEN

Model : CM555-90325

Product name : USB C Docking Station For Laptop/ Computer

Feture : DisplayLink Technology---Realize triple display "ABCD" Extended Mode both on MacOS & Windows

1xHDMI : 8K@30Hz max.

1xHDMI : 4K@60Hz max.

1xDisplayPort : 4K@60Hz max.

1xRJ45 Ethernet : 1000Mbps max., Compliant with IEE 802.3, full/ half duplex,
adaptive 10Mbps, 100Mbps, 1000Mbps

1xPD3.0 : 100W super fast charge

1xUSB3.1 A : 10Gbps

1xUSB3.1 C : 10Gbps

2xUSB3.0 A : 5Gbps

1xSD 3.0 : 104MB/ s. max

1xTF 3.0 : 104MB/ s. max

1x3.5mm audio : support headphones, stereo output,
microphone input, wire control and other functions

Supported system : Windows 10/ 8.1/ 8/ 7/ XP; MAC OS;

Material ： Aluminum alloy

Color ： Silver

Cable Length ：15cm

Packaging : UGREEN retail box (Hard Material)
